Crown Moulding 4" - 15

Crown Moulding 4" - 15

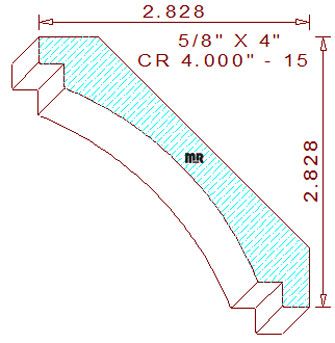

This Crown Moulding 4" - 15 measures 4.000" wide by .625" thickness, the symmetrical profile is comprised of a 3-41/64" radius cavetto in the center flanked by two notched fillets, one on top and the other at the bottom. The spring angles are set at forty-five degree which sets the height and projection at an identical dimension of 2-53/64" tall and wide. All points in the design are intentionally placed on the same level plane creating excellent hold down conditions during the milling process on an industrial style moulder.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
