Crown Moulding 4" - 16

Crown Moulding 4" - 16

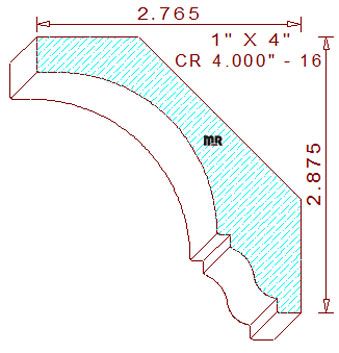

This stylish Crown Moulding 4" - 16 measures 4.000" wide by 1.000" thickness which will require five quarter lumber to produce this pattern on an industrial style moulder. The profile starts on top with a 3/8" tall vertical fillet that is connected to a large cavetto in the center which is attached to a 1/8" X 1/8" notched fillet, a cyma recta and 1/4" wide squared fillet at the bottom of the pattern. When properly milled and installed the height becomes 2-7/8" tall with a projection of 2-49/64" wide, the spring angles are fixed at forty-five degrees with two of the points of the design purposely placed on the same level plane for superior hold down properties during the milling process.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
