Crown Moulding 4" - 17

Crown Moulding 4" - 17

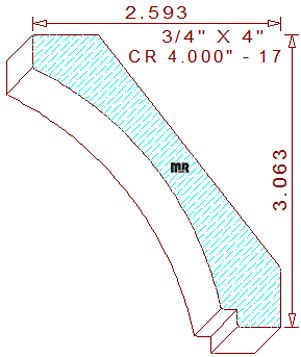

This Crown/Cove Moulding 4" - 17 measures 4.000" wide by .750" thickness, the profile is comprised of a roughly 3-5/8" cove in the center that is flanked by a .361" vertical fillet on top and a 3/16" by 3/16" notch with a 7/16" wide horizontal fillet at the bottom. When installed the height becomes 3-1/16" tall with a projection of 2-19/32" wide, the spring angels are fixed at thirty-eight and fifty-two degrees with two points of the detail intentionally placed on the same level plane to assist in holding down the pattern while milling the profile.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
