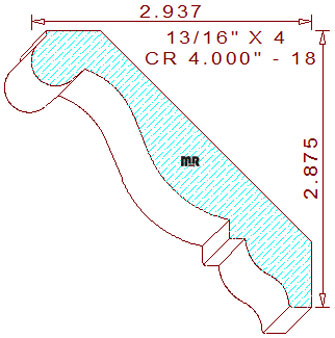

This Creative Crown Moulding 4" - 18 measures 4.000" wide by .812" thickness, with a .497" depth of cut on the top, and .446" depth of cut on the right vertical cutters.
The innovative profile consists of a 5/64" tall vertical fillet attached to a three quarter round bead on top, connected to a cyma recta in the middle, that transitions into a stepped fillet, joined to a cyma reversa with a horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-five degree, these specific bevels set the installed height at 2-7/8" tall, with a projection of 2-15/16" wide. The high points in the pattern are positioned on the same level plane, this specialized design feature will provide superior hold down conditions while milling the pattern.
This professionally drafted cad dxf file contains two high precision moulding template designs to create moulder knives for this gorgeous crown moulding detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
