Crown Moulding 4" - 19

Crown Moulding 4" - 19

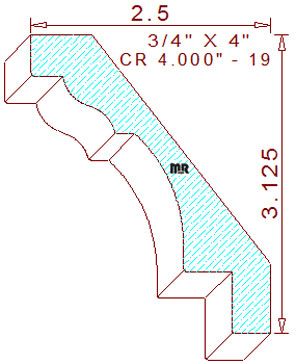

This Crown Moulding 4" - 19 measures 4.000" wide by .750" thickness, the profile is comprised of a cyma reversa flanked by two horizontal and one vertical fillets in the upper portion attached to a cavetto/cove in the center with a notched fillet positioned on the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degree which sets the installed height at 3-1/8" tall with a projection of 2-1/2" wide. Three high points in the design are intentionally positioned on the same level plane ensuring optimal hold down conditions while milling this pattern on an industrial style moulder.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
