Crown 4" - 20
Crown 4" - 20

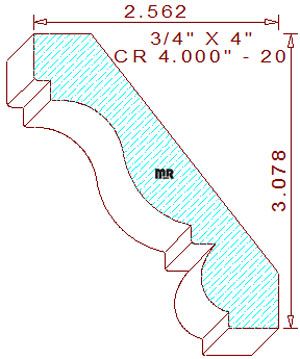

This ornate 4" - 20 crown mould measures 4.000" wide by .750" thickness. The profile comprises a notched fillet on top connected to a cyma recta in the center that transitions into a stepped fillet attached to a half-round circle with a vertical and horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, setting the installed height at 3-5/64" tall with a 2-9/16" wide projection. Three high points in the design are purposely positioned on the same level plane, creating optimal hold-down conditions while milling this pattern on an industrial molder.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.477
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.357
Top Cutter Head
Width: 4.000
Depth of Cut: 0.485
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$290.00
Not Needed
Total:
$623.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$309.00
Not Needed
Total:
$661.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$337.50
Not Needed
Total:
$718.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
