Crown Moulding 4" - 31

Crown Moulding 4" - 31

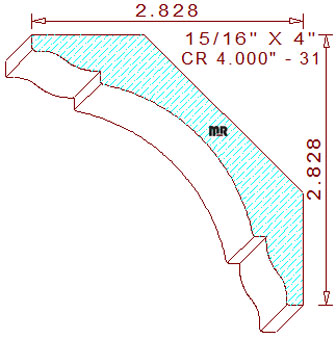

This Crown/Cove Moulding 4" - 31 measures 4.000" wide by .937" thickness with a depth of cut of .831" on both the right and left vertical back bevel cutters, and a .589" depth of cut on the top horizontal set of moulding knives.

The symmetrical profile is comprised of a 2-1/32" radius cove in the center, attached to a 9/64" vertical and horizontal fillet, connected to a two tangent radius ogee, with an 11/64" fillet at the top and bottom of the pattern. The spring angles are fixed at forty-five degree, search our bevels category by this degree to find a set of back bevel cutters appropriate for this creative crown/cove moulding design, these specific back bevels set the installed height and projection at an identical dimension of 2-53/64" tall and wide. Two of the high points in the detail were deliberately positioned on the same level plane, this standard design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is properly set parallel to the moulder bed plates.

Need this profile template and a set of custom moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling moulding designs to help match your creative style.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
