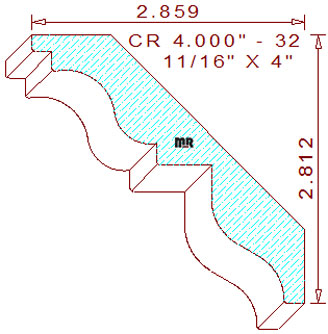

This Appealing Crown Moulding 4" – 32 measures 4.000" wide by .938" thickness with a depth of cut of .548" on the right vertical back bevel cutters, .581" on the left vertical blades and a .471" depth of cut on the top horizontal set of moulding knives.
The beautiful profile is comprised of a cyma recta in the upper portion, with an attached 13/32" wide by 13/32" tall notched fillet, joined to a 7/32" tall by 9/16" wide squared fillet in the center, connected to a cyma reversa and a 7/32" wide horizontal fillet on the bottom of the pattern. The spring angles are fixed at forty-five degrees, search our bevels category by this degree to find a set of back bevel cutters appropriate for this creative crown/cove moulding design, these specific back bevels set the installed height at 2-13/16" tall with a projection of 2-15/64" wide. Three high points in the detail are intentionally positioned on the same level plane, this specialized design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is properly set parallel to the moulder bed plates.
Please read our commentary about axial constant position for crown moulding bevels, the article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the moulder is axially calibrated.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
