Crown 4" - 47
Crown 4" - 47

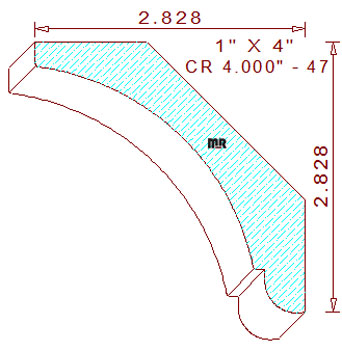

This 4" - 47 crown mould measures 4.000" wide by 1.000" thickness. The profile comprises a 1-43/64" radius cavetto in the center, attached to a 1/8" wide horizontal fillet with an 11/32" radius quarter circle at the bottom of the pattern. The spring angles are fixed at forty-five degrees, search our bevels category by degrees to find a back-bevel cutter appropriate for this crown/cove moulding design. These specific back bevels set the installed height and projection at an identical dimension of 2-53/64" tall and wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.830
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.830
Top Cutter Head
Width: 4.000
Depth of Cut: 0.549
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$290.00
Not Needed
Total:
$599.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$309.00
Not Needed
Total:
$637.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$337.50
Not Needed
Total:
$694.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
