Crown Moulding 4" - 8

Crown Moulding 4" - 8

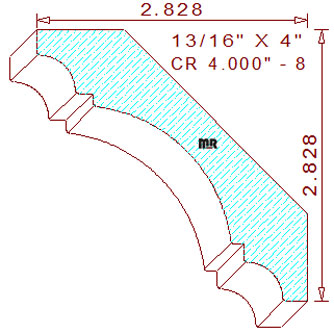

This Crown/Cove Moulding 4" - 8 measures 4.000" wide by .812" thickness, with a .382" depth of cut on the top horizontal set of knives.

The symmetrical profile is comprised of a 1-5/8" radius cavetto in the center, flanked and connected to a 9/64" by 3/16" notched fillet, joined to a 3/8" radius cove with a 1/4" tall and wide fillet positioned at the top and bottom of the pattern. The spring angles are fixed at forty-five degree, search our bevels category by the degree to find a set of back bevel cutters appropriate for this innovative crown moulding design.

Please read our commentary about axial constant position for crown moulding bevels, the article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the moulder is axially calibrated.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
