Crown 4-1/16" - 2
Crown 4-1/16" - 2

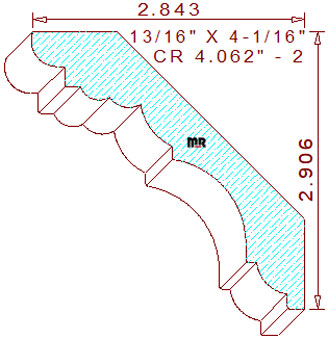

This intricate 4-1/16" - 2 crown mould measures 4.062" wide by .812" thickness, permitting the detail to be cut sprung (laying horizontally flat) from four-quarter lumber. The lavish profile is composed of a 9/32" quarter round bead joined to a 7/32" tall by 11/64" broad perpendicular lines on the top left, connected to a series of three semicircular arcs with a 9/64" tall vertical line in the center, attached to a 57/64" cove with a 3/8" radius ovolo and a 3/16" horizontal segment at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 2-29/32" tall with a projection of 2-27/32" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.697
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.651
Top Cutter Head
Width: 4.063
Depth of Cut: 0.421
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$293.28
Not Needed
Total:
$602.28
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$312.53
Not Needed
Total:
$640.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$341.41
Not Needed
Total:
$697.91
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
