Crown 4-1/16" - 6
Crown 4-1/16" - 6

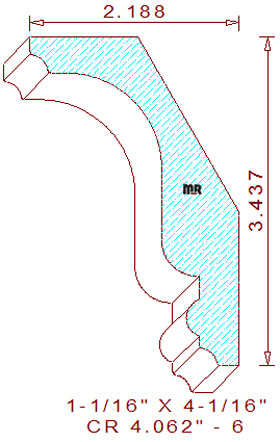

This striking 4-1/16" - 6 crown mould measures 4.071" wide by 1.062" thickness. The gorgeous profile is comprised of a 3/16" tall vertical fillet on top attached to a 3/16" radius cavetto that transitions into a reversible congee consisting of a 1" radius on above, and a 3/8" radius below, joined to a 1/4" tall sunk fillet, 3/8" wide half circle, small fillet, 3/16" radius cove, with a 15/64" horizontal fillet at the bottom. The spring angles are fixed at thirty and sixty degrees, these specific back bevels set the installed height at 3-7/16" tall with a projection of 2-3/16" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.981
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.805
Top Cutter Head
Width: 4.063
Depth of Cut: 0.719
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$312.53
Not Needed
Total:
$664.53
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$185.50
$331.78
Not Needed
Total:
$702.78
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$199.75
$360.66
Not Needed
Total:
$760.16
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
