Crown Moulding 4-3/16" - 1

Crown Moulding 4-3/16" - 1

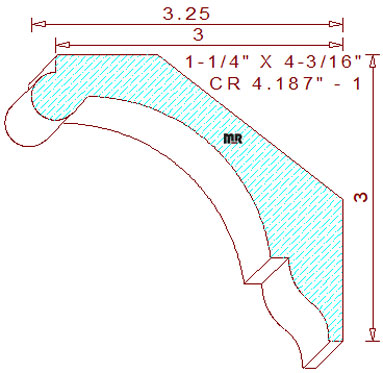

This Crown Moulding 4-3/16" - 1 measures 4.187" wide by 1.250" thickness with a depth of cut of .916" on the right vertical profile cutters, a .819" depth of cut on the left set of blades, and a .858" depth of cut on the top horizontal moulding knives. We have a few complementing casing profiles you may want to review and consider for other rooms in the home, casing 2.000" - 6, and casing 4.250" - 26.

The sophisticated profile is comprised of a three quarter round circular bead with a 3/16" tall vertical fillet on top, connected to a 1-15/16" radius cove in the center, joined to a two tangent radius cyma reversa flanked by horizontal fillets at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, these are included in the downloadable dxf file. These specific back bevel angles set the installed height at 3" tall, with a projection of 3-1/4" wide. Two high points in the design were intentionally positioned on the same plane, our proprietary design features will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the moulder bed plates.

Utilize any of our patterns to create a stylish moulding catalog for your millwork company, offer more eye-catching profiles to your clients while reducing production cost spent on profile knife design. Please let us help you in the transformation of your client's house being constructed into a home.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
