Crown 4-1/4"
Crown 4-1/4"

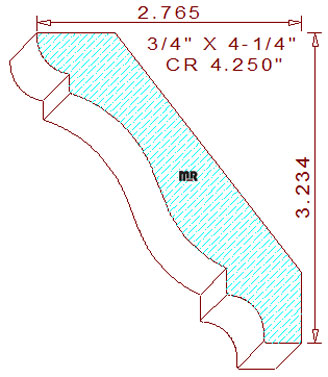

This fine-looking 4-1/4"crown mould measures 4.250" wide by .750" thickness. The creative design is comprised of a cyma recta positioned in the center, flanked by vertical fillets with a 25/64" radius quarter circle on top and a 3/8" radius cove attached to a 25/64" horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees; search our bevels category for a set of back bevel cutters appropriate for this charming crown design. These bevels set the installed height at 3-15/64" tall, projecting 2-49/64" wide.
Utilize any of our profiles to create a stylish custom moulding catalog for your millwork company and offer more eye-catching patterns to your clients while reducing production cost spent on knife design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.641
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.453
Top Cutter Head
Width: 4.250
Depth of Cut: 0.397
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$303.00
Not Needed
Total:
$645.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$323.00
Not Needed
Total:
$684.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$353.00
Not Needed
Total:
$743.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
