Crown 4-1/4" - 10
Crown 4-1/4" - 10

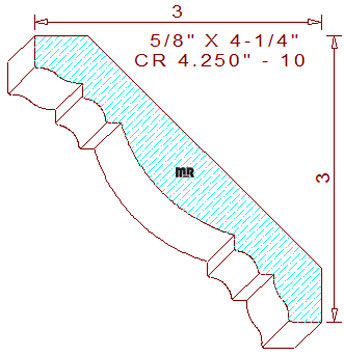

This attractive 4-1/4" - 10 crown mould measures 4.250" wide by .625" thickness. The symmetrical profile comprises a 1-47/64" radius arc positioned in the center, attached to a 1/4" radius cavetto flanked by small fillets, connected to a cyma recta/reversa on both the top and bottom of the pattern. The spring angles are fixed at forty-five degrees. Search our bevels category by degree for a set of back bevel cutters appropriate for this lovely crown design. These specific bevels set the installed height and projection at an identical dimension of 3" tall and wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.399
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.399
Top Cutter Head
Width: 4.250
Depth of Cut: 0.285
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$303.00
Not Needed
Total:
$593.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$323.00
Not Needed
Total:
$632.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$353.00
Not Needed
Total:
$690.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
