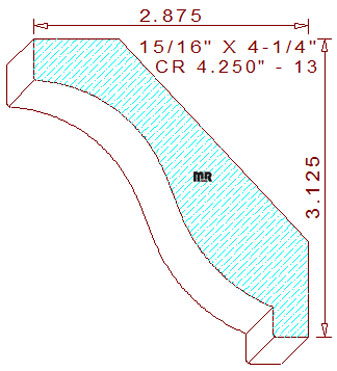

This Elegant Crown Moulding 4-1/4" – 13 measures 4.250" wide by .937" thickness. The artistic design consists of a 7/16" tall vertical fillet on top connected to a two-tangent radius forming a cyma recta in the center with a 5/16" tall by 3/8" wide stepped fillet positioned at the bottom of the pattern. To establish even hold down points while milling this detail on an industrial style moulder or shaper the spring angles are fixed at forty-three and forty-seven degree which will set the installed height at 3-1/8" tall with a projection of 2-7/8" wide. This Cad generated Dxf file contains three skillfully drafted template designs for creating profile knives for this pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
