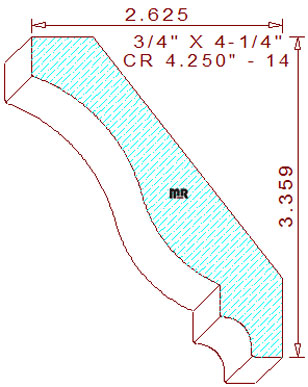

This Traditional Crown Moulding 4-1/4" - 14 measures 4.250" wide by .750" thickness, with a .337" depth of cut on the top horizontal set of moulding knives.
The classic design is comprised of a cyma recta positioned in the center, flanked by a 13/32" tall vertical fillet on top, and a 11/32" tall vertical fillet below, attached to a 19/64" radius cavetto with a 21/64" horizontal fillet at the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degree, search our bevels category by degree for a set of back bevel cutters appropriate for this charming crown moulding design. These specific bevels set the installed height at 3-15/64" tall, with a projection of 2-49/64" wide.
We provide the cut steel size on all our moulding knife designs, this specialized feature allows you to be able to obtain the correct width size of knife steel before you start knife grinding procedures and moulding production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
