3" Quarter Round Crown Moulding 4-1/4" - 2

3" Quarter Round Crown Moulding 4-1/4" - 2

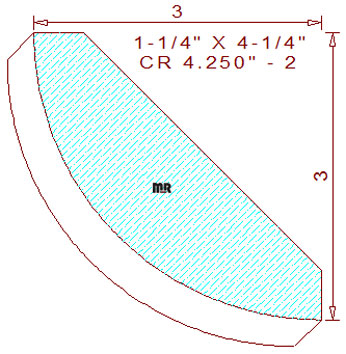

This 3" Quarter Round Crown Moulding 4-1/4" - 2 measures 4.250" wide by 1.250" thickness, with a .967" depth of cut on the top horizontal set of moulding knives.

The symmetrical profile is comprised of a three inch radius quarter round circle. Find other quarter round profiles in our radius category, just input the desired size radius in the search boxes provided. The spring angles are fixed at forty-five degree, search our bevels category by degree for a back bevel cutter appropriate for this quarter round crown moulding. These specific bevels set the installed height and projection at an identical dimension of 3" tall and wide.

Try one of our 125% concentration ultimate borazon grinding wheels. Finish grinding at 3000 rpm with a twenty-degree back clearance angle, will create a superior micro edge on all your high-speed steel knives. During the machining process these cutters will be capable of milling some of the finest quality architectural mouldings you have ever produced.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
