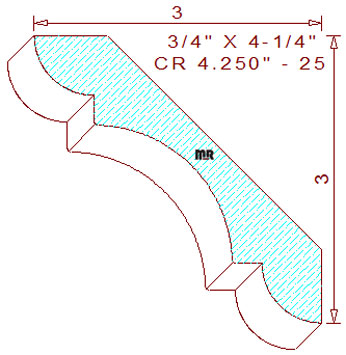

The symmetrical profile is comprised of a 1-7/16" radius cavetto in the center, flanked by 5/16" tall and wide fillets, attached to a 5/8" radius quarter round circle on both the top and bottom of the pattern. The spring angles are fixed at forty-five degrees, search our bevels category by degree to find a set of back bevel cutters appropriate for this beautiful crown moulding. These specific bevels set the installed height and projection at an identical dimension of 3" tall and wide. The two high points in the detail were intentionally positioned on the same level plane, this design feature will assure excellent hold down conditions while milling the detail on an industrial moulder.
Custom-made excellence is a phrase used to define the beauty, style and artisanship of all our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge, and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
