Crown 4-1/4" - 60
Crown 4-1/4" - 60

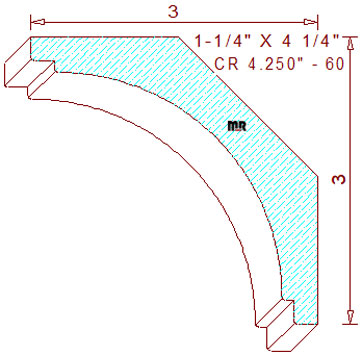

This deep 4-1/4" - 60 concave crown mould measures 4.250" wide by 1.250" thickness, requiring six-quarter lumber for milling on an industrial moulder. The dished out profile is comprised of a 2-11/32" radius cove in the center, flanked by a 1/8" tall and wide straight line with a 1/4" by 1/4" squared lines at the top and bottom of the design. The spring angles are fixed at forty-five degrees. These dedicated back bevels set the installed height and projection at an identical dimension of 3" tall and wide. We offer a whole category dedicated to just coves in our moulding catalog, enter the size width you require in the search boxes provided.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.090
Left Cutter Head
Thickness: 1.625
Depth of Cut: 1.090
Top Cutter Head
Width: 4.250
Depth of Cut: 0.748
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$323.00
Not Needed
Total:
$632.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$343.00
Not Needed
Total:
$671.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$373.00
Not Needed
Total:
$729.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
