Crown 4-1/4" - 65

Crown 4-1/4" - 65

Crown 4-1/4" - 65

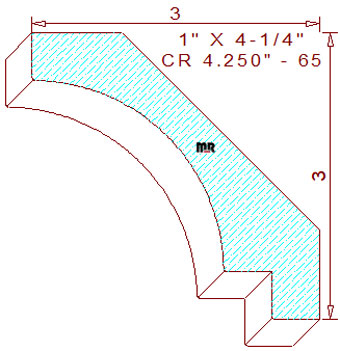

This attractive 4-1/4" - 65 concave crown mould measures 4.250" wide by 1.000" thickness, allowing the pattern to be milled from five-quarter lumber. The lovely profile is comprised of a large 2" radius cove in the center, connected to a 1/2" tall vertical line at the top, the bottom portion consists of a 1/2" wide by 1/2" tall notch joined to a 1/2" horizontal line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3" tall with a projection of 3" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.663
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.663
Top Cutter Head
Width: 4.250
Depth of Cut: 0.569
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$293.00
Not Needed
Total:
$592.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$313.00
Not Needed
Total:
$631.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$333.00
Not Needed
Total:
$670.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
