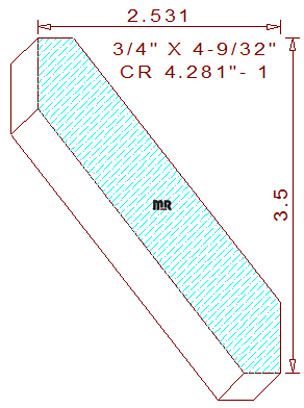

This Shaker/Mission Style Crown Moulding 4-9/32" - 1 measures 4.281" wide by .750" thickness, the profile can actually be milled to any desired size within the parameters of the moulder being utilized to mill the pattern because this detail is milled from vertical spindles. At this particular size the height becomes 3-1/2" tall with a projection of 2-17/32" wide, the spring angles are fixed at 38 and 52 degrees.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
