Crown 4-9/32" - 2
Crown 4-9/32" - 2

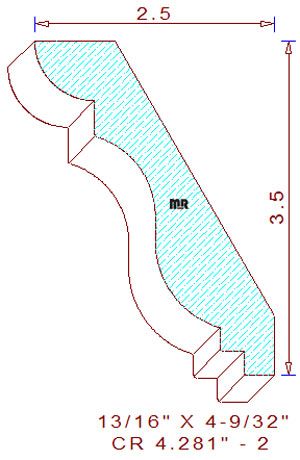

This lovely crown moulding 4-9/32" - 2 measures 4.281" wide by .812" thickness. The profile consists of a quarter round bead on top, a French curve in the middle, and a two-step fillet on the bottom, installed height is 3-1/2" with a projection of 2-1/2", the spring angles are set at thirty and sixty degrees, please browse our bevels category for bevels that will be useful for many profiles including this one.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.729
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.314
Top Cutter Head
Width: 4.281
Depth of Cut: 0.599
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$304.61
Not Needed
Total:
$647.11
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$324.74
Not Needed
Total:
$686.24
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$354.92
Not Needed
Total:
$744.92
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
