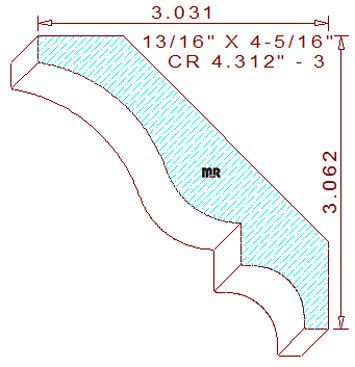

This Standard Crown Moulding 4-5/16" - 3 measures 4.312" wide by .812" thickness, the profile is comprised of a cyma recta flanked by vertical fillets in the upper portion and a cavetto with an attached horizontal fillet on the bottom. With the spring angles fixed at forty-five degree the installed height becomes 3-1/16" tall with a projection of 3-1/32" wide
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
