Crown 4-5/16" - 6
Crown 4-5/16" - 6

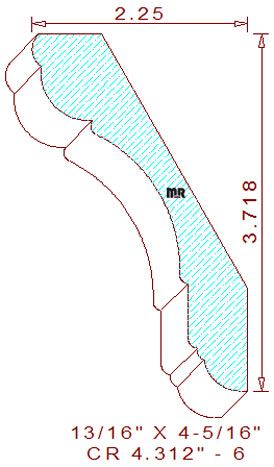

This 4-5/16" - 6 crown mould measures 4.312" wide by .812" thickness. The profile is comprised of two radius arcs at the top with a large cavetto in the center and a radius-stepped fillet with two smaller beads at the bottom. The spring angles are fixed at thirty and sixty degrees, setting the installed height at 3-23/32" tall with a projection of 2-1/4" wide. Two high points of the design have purposely been placed on the same level plane for optimal hold-down conditions while milling the pattern on an industrial molder.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.569
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.536
Top Cutter Head
Width: 4.312
Depth of Cut: 0.509
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$167.50
$167.50
$307.22
Not Needed
Total:
$642.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$177.00
$177.00
$327.47
Not Needed
Total:
$681.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.25
$191.25
$357.84
Not Needed
Total:
$740.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
