Crown Moulding 4-7/16" - 2

Crown Moulding 4-7/16" - 2

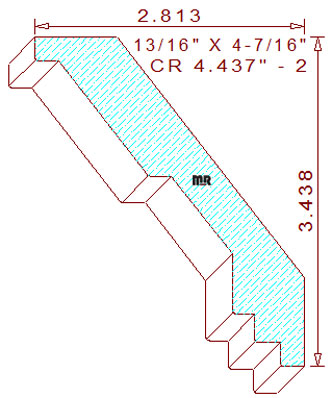

This Shaker/Beveled Crown Moulding 4-7/16" - 2 measures 4.441" wide by .812" thickness, with a .369" depth of cut on the top horizontal moulder cutters. Please look in our bevels category, (search by degree) for a set of beveled moulding cutters appropriate for this profile design. We have intentionally designed all our crown and cove mouldings with back bevels of forty-five degree and under to be milled on the right vertical cutter head, all forty-five degree back bevels and higher are milled by the left vertical cutter head on an industrial moulder.

The classy profile is comprised of a series of stepped and angled fillets positioned at different elevations, creating a southwestern style design that will absolutely enhance the architectural décor of any home or office. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-7/16" tall, with a projection of 2-13/16" wide. Three high points in the pattern were intentionally placed on the same level plane, this specialized design feature will assure excellent hold down capabilities while milling this detail on an industrial style moulder machine.

Please read our commentary about Axial Constant Position for Crown Moulding Bevels, this article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the moulder is axially calibrated.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
