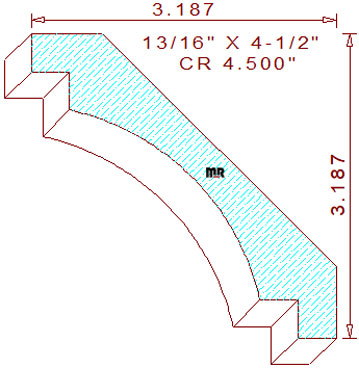

This Symmetrical Crown Moulding 4-1/2" measures 4.500" wide by .812" thickness, the design is composed of two, roughly 13/32" by 13/32" notched fillets on both top and bottom of the profile, the center portion consist of a 2-5/8" radius cavetto. Installed height and projection are both 3/3/16", spring angles are set at forty-five degree. There are a total of four knife designs included in the downloadable dxf file, the one you're viewing and a gable end design that installs on a 3"/12" pitched roof, the profile changes slightly to compensate for the rake angle of the roof.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
