Crown 4-1/2" - 10

Crown 4-1/2" - 10

Crown 4-1/2" - 10

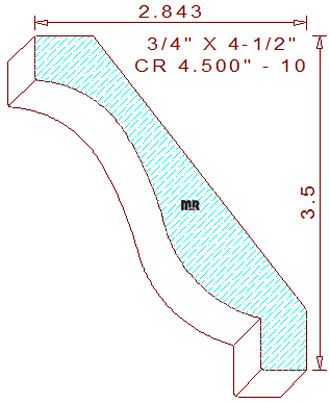

This cyma recta 4-1/2" - 10 crown mould measures 4.500" wide by .750" thickness. The profile is composed of a just under 1/2" tall vertical fillet on the top, an elegant free-flowing S curve or cyma recta in the middle and a squared stepped fillet at the bottom portion of the design. When this profile is installed the height becomes 3-1/2" tall with a projection of 2-27/32" wide, the spring angles are set at thirty-eight and fifty-two degrees. The crown points are purposely set on the same level plane to eliminate any chatter during production. The bead of the S curve is recessed below the points by .020" to eliminate any possibility of a burnish mark left on the wood from the pressure element of the moulder; this practice will also reduce the time frame in the finishing process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.478
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.387
Top Cutter Head
Width: 4.500
Depth of Cut: 0.433
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$305.50
Not Needed
Total:
$629.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$326.50
Not Needed
Total:
$669.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$347.50
Not Needed
Total:
$709.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
