Crown 4-1/2" - 11
Crown 4-1/2" - 11

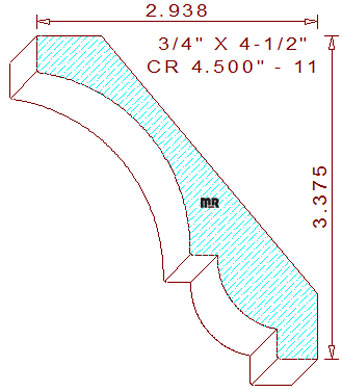

This custom 4-1/2" - 11 crown mould measures 4.500" wide by .750" thickness. The distinctive terminating profile comprises a 1-27/32" cavetto flanked by a 3/8" tall vertical fillet on top, and a 9/32" wide horizontal fillet below, connected to an ovolo geometrical shape at the bottom of the pattern. The spring angles are fixed at forty and fifty degrees; search our bevels category by degree for a set of back bevel cutters appropriate for this crown design. These specific bevels set the installed height at 3-3/8" tall, with a 2-15/16" wide projection. Please read our commentary about axial constant position for crown moulding angles, this article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the machinery is axially calibrated.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.519
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.438
Top Cutter Head
Width: 4.500
Depth of Cut: 0.469
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$316.00
Not Needed
Total:
$649.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$337.00
Not Needed
Total:
$689.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$368.50
Not Needed
Total:
$749.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
