Crown Moulding 4-1/2" - 16

Crown Moulding 4-1/2" - 16

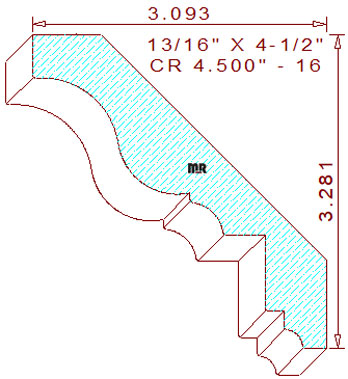

This Decorative Crown Moulding 4-1/2" - 16 measures 4.500" wide by .813" thickness with a depth of cut of .509" on the right vertical profile cutters, a .651" depth of cut on the left set of knives, and a .548" depth of cut on the top horizontal moulding blades.

The designer profile is comprised of an cyma recta attached to a 29/64" tall vertical line at the top. The center of the design consists of a 23/64" radius cove flanked by 7/16" wide horizontal and a 3/32" tall vertical line, attached to a 25/32" tall straight line, this notched area is a great spot for dentil or rope moulding, the bottom of the pattern retains a small 3/16" radius cove bordered by horizontal and vertical lines. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-9/32" tall, with a projection of 3-3/32" wide. Four high points in the design were intentionally positioned on the same plane, our dedicated design features will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the bed plates.

We invite you to search for other moulding design ideas for your client's elegant home, we have over 15,000 alternative profile options for you to choose from, simply alter the search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom profile designs.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
