Crown 4-1/2" - 30
Crown 4-1/2" - 30

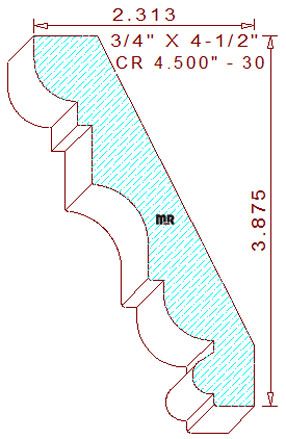

This elaborate 4-1/2" - 30 mid-sized crown mould measures 4.500" wide by .750" thickness. The profile is composed of a 5/8" radius cong'e in the center of the pattern; it is flanked by stepped fillets and a quarter round bead at the top, and an ovolo with a thumbnail design that is flanked by sunk fillets at the bottom. With the spring angles fixed at twenty-seven and sixty-three degrees, the installed height becomes 3-7/8" tall with a 2-5/16" wide projection.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.589
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.293
Top Cutter Head
Width: 4.500
Depth of Cut: 0.582
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
