Crown 4-1/2" - 41
Crown 4-1/2" - 41

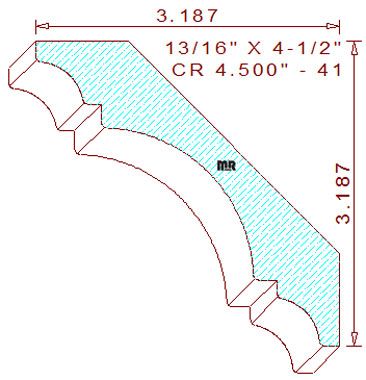

This symmetrical 4-1/2" - 41 crown mould measures 4.500" wide by .812" thickness. The profile consists of a large centered cove, two quirked steps, and two smaller coves, one at the top and one at the bottom, with spring angles at forty-five degrees and height & projection at 3-3/16" tall and wide when installed.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.686
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.686
Top Cutter Head
Width: 4.500
Depth of Cut: 0.437
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$316.00
Not Needed
Total:
$625.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$337.00
Not Needed
Total:
$665.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$368.50
Not Needed
Total:
$725.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
