Crown 4-35/64"
Crown 4-35/64"

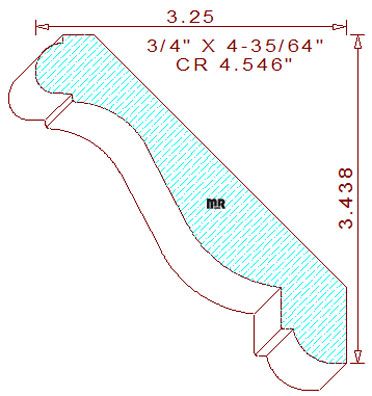

This 4-35/64" crown mould measures 4.546" wide by .750" thickness. The detail is comparable to Saroyan 3311 crown moulding. The pattern consists of a thumbnail-shaped bead flanked by fillets on top connected to a cyma recta in the center with a stepped fillet and a quarter-round bead positioned at the bottom of the profile. The spring angles are fixed at forty-five degrees, which sets the installed height at 3-7/16" tall with a projection of 3-1/4" wide. The Cad-produced Dxf file contains two high-precision template drawings to create profile knives for the top and left side profile portion of this detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.537
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.290
Top Cutter Head
Width: 4.546
Depth of Cut: 0.425
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$134.00
$318.39
Not Needed
Total:
$618.89
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$141.00
$339.58
Not Needed
Total:
$656.58
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$151.50
$371.35
Not Needed
Total:
$713.10
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
