Crown Moulding 4-9/16"

Crown Moulding 4-9/16"

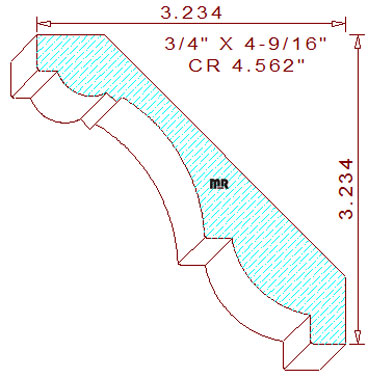

This Creative Crown Moulding 4-9/16" measures 4.562" wide by .750" thickness with a .470" depth of cut on the top cutter head, both the right and left vertical cutter heads on the moulder have a .500" depth of cut. The profile is comprised of a 3/8" tall vertical fillet on top attached to a half round bead flanked by both horizontal and a chamfered fillet that transitions into a 1-3/4" radius arc joined with a ovolo shaped section with a 3/8" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-five degree which sets the installed height and projection at an identical 3-15/64" tall and wide. Please read our commentary Axial Constant Position for Crown Moulding Bevels, this article will help you dial this profile in axially on the first try when milling this detail on an industrial style moulder.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
