Crown 4-9/16" - 13
Crown 4-9/16" - 13

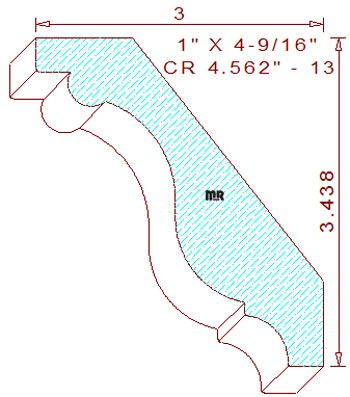

This beautiful 4-9/16" - 13 crown mould measures 4.556" wide by 1.000" thickness. The profile comprises cyma recta in the center with a half-round bead and stepped fillet on top and a cavetto flanked by small fillets at the bottom. The spring angles are fixed at thirty-eight and fifty-two degrees, setting the installed height at 3-7/16" tall with a projection of 3" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.749
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.546
Top Cutter Head
Width: 4.563
Depth of Cut: 0.547
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$319.28
Not Needed
Total:
$661.78
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$340.53
Not Needed
Total:
$702.03
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$372.41
Not Needed
Total:
$762.41
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
