Crown 4-9/16" - 7
Crown 4-9/16" - 7

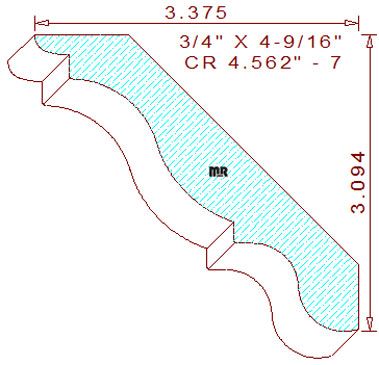

This lovely 4-9/16" - 7 crown mould measures 4.562" wide by .750" thickness. The profile comprises a cyma recta in the middle with an attached vertical fillet and quarter-round bead on top and another vertical fillet connected to a smaller cyma recta on the bottom. The spring angles are fixed at forty-five degrees, which sets the installed height at 3-3/32" tall and a projection of 3-3/8" wide; the profile also has a favorable hold-down point built into the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.691
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.474
Top Cutter Head
Width: 4.563
Depth of Cut: 0.437
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$123.50
(Template not needed)
$319.28
Not Needed
Total:
$618.78
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$133.00
(Template not needed)
$340.53
Not Needed
Total:
$659.03
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$147.25
(Template not needed)
$372.41
Not Needed
Total:
$719.41
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
