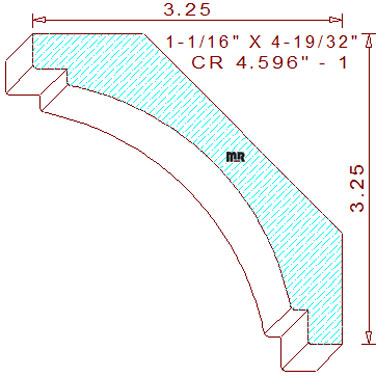

This Crown/Cove Moulding 4-19/32" - 1 measures 4.596" wide by 1.062" thickness, with a .827" depth of cut on both the right and left vertical moulding cutters and a .624" depth of cut on the top horizontal set of moulding knives.
The symmetrical profile is comprised of a 2-7/16" radius cove in the center, attached to a 3/16" tall and wide, by 3/8" tall and wide notched fillet, connected to a 3/8" vertical and horizontal fillet at the top and bottom of the pattern. The spring angles are fixed at forty-five degrees, search our bevels category by this degree to find back bevel cutters appropriate for this crown/cove moulding design, these specific back bevels set the installed height and projection at 3-1/4" tall and wide.
Please read our commentary about axial constant position for crown moulding bevels, the article will help you dial this profile in axially on the first try when milling this detail on an industrial moulder, provided the moulder is axially calibrated.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
