Crown 4-5/8" - 16
Crown 4-5/8" - 16

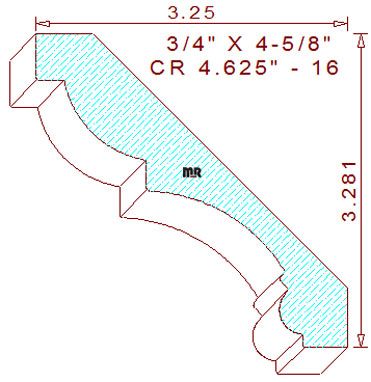

This sophisticated 4-5/8" - 16 crown mold measures 4.625" wide by .750" thick; the profile consists of many beautiful geometrical shapes. When installed, the height becomes 3-9/32" tall with a projection of 3-1/4" wide with a spring angle fixed at forty-five degrees. Three high points of the crown are positioned on the same level plane to assist you in holding down the moulding on the bedplates while milling, the two radiused arcs have been purposely recessed below the high points to reduce the possibility of placing an unsightly burnish or shine mark on the face on the detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.422
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.438
Top Cutter Head
Width: 4.625
Depth of Cut: 0.464
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$322.50
Not Needed
Total:
$612.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$344.00
Not Needed
Total:
$653.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$376.25
Not Needed
Total:
$713.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
