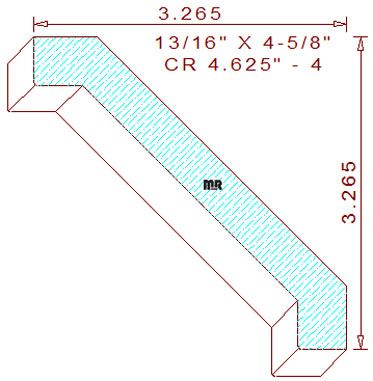

This Shaker Style Beveled Crown Moulding 4-5/8" - 4 measures 4.625" wide by .812" thickness, the profile consist of two 1/2" wide by 1/2" tall stepped fillets, one is positioned on the top the other on the bottom which are connected to one another by a 3-3/16" wide forty-five degree straight line which creates a splay face when mounted.The height and projection after installation will retain identical dimensions at 3-17/64" tall and wide with the spring angles fixed at forty-five degree. Two points of the design are positioned on the same plane for hold down purposes during manufacturing. We have many different sizes of this style crown in our profile catalog, just simply change the search parameters to view them all.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
