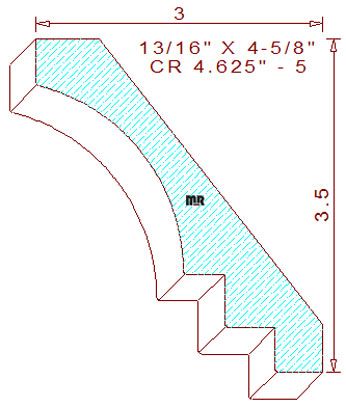

Stepped Crown/ Cove Moulding 4-5/8" - 5 measures 4.605" wide by .813" thickness, the profile is comprised of a 1/2" vertical fillet at the top of the pattern with an attached 2" radius cove and two roughly 1/2" wide by 1/2" tall stepped fillets in the lower portion of the design. When installed the height becomes 3-1/2" tall with a projection of 3" wide with the spring angles fixed at thirty-eight and fifty-two degrees. Three even points of the pattern are positioned on the same level plane creating superior hold down conditions during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
