Crown 4-11/16" - 9
Crown 4-11/16" - 9

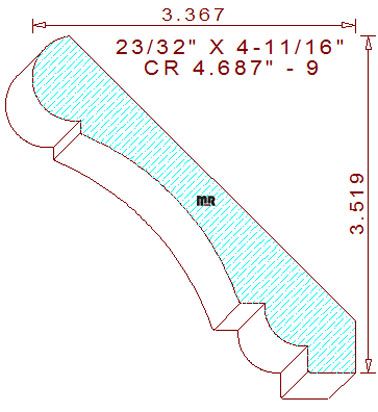

This 4-11/16" - 9 crown mould measures 4.687" wide by 23/32" in thickness. The profile consists of a half-round bead at the top, a small fillet, a large cove, and an ovolo flanked by two fillets at the bottom; the installed height is 3-33/64" tall with a projection of 3-3/8" wide, the spring angles are fixed at forty-five degree.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.718
Depth of Cut: 0.218
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.383
Top Cutter Head
Width: 4.687
Depth of Cut: 0.428
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$166.50
$325.72
Not Needed
Total:
$626.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$176.00
$347.47
Not Needed
Total:
$664.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$190.25
$380.09
Not Needed
Total:
$721.84
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
