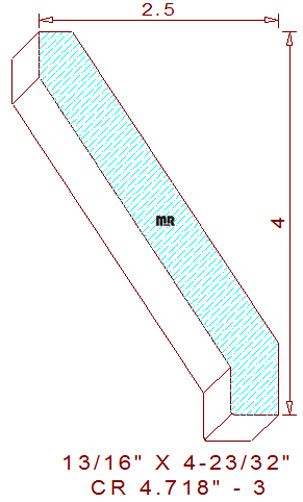

This Mission/ Shaker Style Crown Moulding 4-23/32" - 3 measures 4.718" wide by .812" thickness, the classic angled design consist of a series of chamfered bevels and fillets, The spring angles are fixed at thirty-three point five degree and fifty-six point five degree which determines the installed height at 4" tall with a projection of 2-1/2" wide. The pattern is designed for favorable hold down conditions while milling the detail, simply move the moulder pressure element out/ away from the fixed inside fence laterally and rest on the main flat portion of the profile.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
