Crown 4-23/32" - 4
Crown 4-23/32" - 4

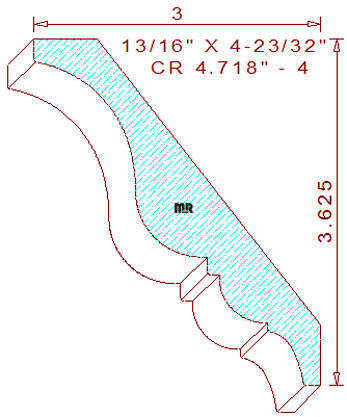

This ornate 4-23/32" - 4 crown mould measures 4.704" wide by .812" thickness. The creative design consists of a cyma recta in the upper portion connected to a stepped fillet, ovolo, and an elliptical-shaped cavetto on the bottom of the pattern. The spring angles are fixed at thirty-eight and fifty-two degrees, setting the installed height at 3-5/8" tall with a projection of 3" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.522
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.389
Top Cutter Head
Width: 4.718
Depth of Cut: 0.513
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$327.34
Not Needed
Total:
$660.34
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$349.21
Not Needed
Total:
$701.21
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$382.02
Not Needed
Total:
$762.52
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
