Crown 4-3/4" - 13
Crown 4-3/4" - 13

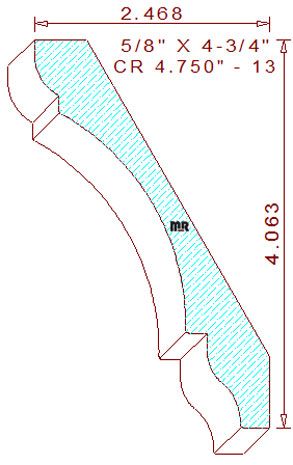

This tall 4-3/4" - 13 crown mould measures 4.750" wide by .625" thickness. The profile consists of a quarter-round bead at the top attached to a vertical fillet and a sizeable shallow cove in the center with a horizontal fillet that transitions into an ogee portion (cyma reversa) at the bottom. When installed, the height becomes 4-1/16" tall with a projection of 2-15/32" wide with the spring angles fixed at thirty and sixty degrees. Three points in the design are intentionally positioned on the same level plane for optimal hold-down conditions while milling the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.473
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.371
Top Cutter Head
Width: 4.750
Depth of Cut: 0.367
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$329.00
Not Needed
Total:
$662.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$351.00
Not Needed
Total:
$703.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$384.00
Not Needed
Total:
$764.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
