Crown Moulding 4-3/4" - 6

Crown Moulding 4-3/4"  - 6

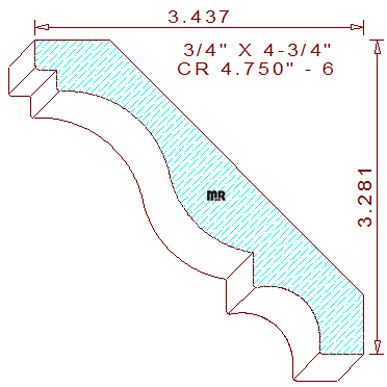

This Crown Moulding 4-3/4" - 6 measures 4.750" wide by .750" thickness, the profile is comprised of a notched fillet in the upper portion which is connected to a cyma recta in the center and a cavetto positioned at the bottom that is flanked by two fillets, one vertical the other horizontal. When installed the height becomes 3-9/32" tall with a projection of 3-7/16" wide with the spring angles fixed at forty-five degree. Four of the points in the design are purposely positioned on the same level plane creating superior hold down conditions while milling the pattern on a industrial moulder.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
