Crown Moulding 4-3/4" - 9

Crown Moulding 4-3/4" - 9

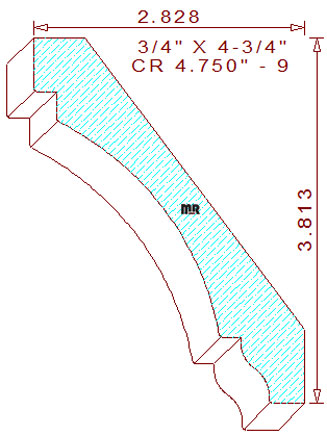

This Creative Crown Moulding 4-3/4" - 9 measures 4.750" wide by .750" thickness, with a .416" depth of cut on the top horizontal set of knives.

The stylish profile is comprised of a 3-1/8" radius cavetto in the center, attached to a 1/4" wide by 5/16" tall notched fillet, connected to a 9/16" tall vertical fillet on the top of the pattern, the bottom of the detail consists of two tangent radiuses creating a cyma reversa flanked by a horizontal fillet on top and bottom. The spring angles are fixed at thirty-seven and fifty-three degree, which are included in the downloadable dxf file. These specific bevels set the installed height at 3-13/16" tall, with a projection of 2-53/64" wide.

Custom-made excellence is a phrase used to define the beauty, style and artisanship of all our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge, and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
