Crown 4-7/8" - 1
Crown 4-7/8" - 1

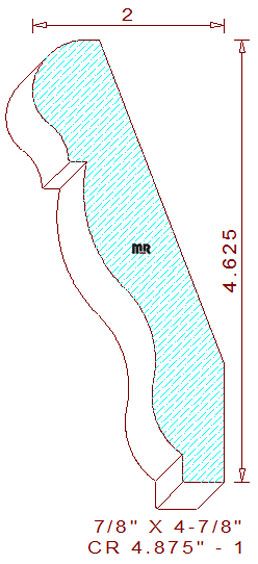

This 4-7/8" - 1 crown mould measures 4.875" wide by .875" thickness. The design is composed of a stepped cyma reversa on top with a double French curve in the center with a squared bottom. When installed, the height is 4-5/8" tall with a projection of 2" wide with the spring angles fixed at twenty-one and sixty-nine degrees.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.875
Depth of Cut: 0.176
Left Cutter Head
Thickness: 0.875
Depth of Cut: 1.312
Top Cutter Head
Width: 4.875
Depth of Cut: 0.562
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$148.00
$335.50
Not Needed
Total:
$617.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$155.00
$358.00
Not Needed
Total:
$654.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$165.50
$391.75
Not Needed
Total:
$708.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
