Crown 4-29/32" - 1
Crown 4-29/32" - 1

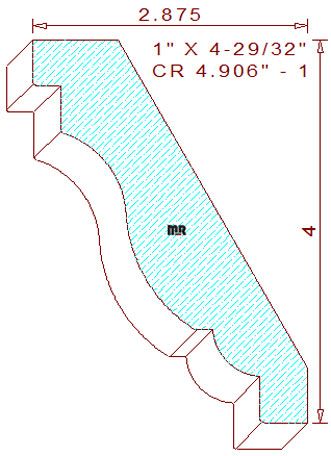

This 4-29/32" - 1 crown mould measures 4.906" wide by 1.000" thickness. The profile comprises a notched fillet on top connected to a cyma recta in the center attached to an offset ovolo on the bottom. The spring angles are fixed at thirty and sixty degrees, which sets the installed height at 4" with a projection of 2-7/8" wide. Three high points of the design are positioned on the same level plane which will be beneficial during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.775
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.285
Top Cutter Head
Width: 4.906
Depth of Cut: 0.840
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$359.74
Not Needed
Total:
$702.24
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$382.36
Not Needed
Total:
$743.86
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$416.30
Not Needed
Total:
$806.30
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
