Crown 4-15/16" - 5
Crown 4-15/16" - 5

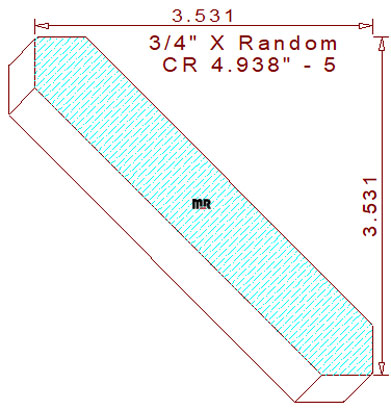

This shaker-style 4-15/16" - 5 crown mould measures any size you desire in width (within machine limits) by .750" thickness. The knives are designed to mill four-quarter lumber from the left and right vertical cutter heads on a moulder, this will enable the machine operator to change width sizes with a simple radial adjustment of the left vertical spindle. The profile is composed of two opposing forty-five-degree beveled lines that are centered on a 3/4" thickness dimension, the template design is capable of milling up to a 15/16" thickness dimension with an easy axial adjustment.
Utilize any of our patterns to create a stylish moulding catalog for your millwork company, or, simply connect our profile catalog to your website, this will enable you to offer more eye-catching profiles to your clients while reducing production cost spent on moulding design. Let us help you in the transformation of that beautiful house into an elegant home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.750
Depth of Cut: 0.442
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.442
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$91.00
(Template not needed)
Not Needed
Not Needed
Total:
$225.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$98.00
(Template not needed)
Not Needed
Not Needed
Total:
$239.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$108.50
(Template not needed)
Not Needed
Not Needed
Total:
$260.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
