Crown 4-15/16" - 6
Crown 4-15/16" - 6

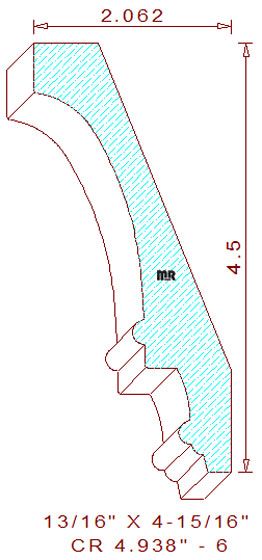

This distinctive 4-15/16" - 6 crown mould measures 4.937" wide by .812" thickness. the main portion of the profile is composed of an elongated elliptical cove with half-round beads, the lower portion is a shallow cove that transitions into two small round beads. Height when installed is 4-1/2" with a projection of 2-1/16", spring angles are fixed at twenty-two and sixty-eight degrees for hold-down purposes during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.312
Left Cutter Head
Thickness: 1.250
Depth of Cut: 1.093
Top Cutter Head
Width: 4.938
Depth of Cut: 0.538
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$148.00
$156.00
$339.78
Not Needed
Total:
$643.78
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$156.00
$164.00
$362.53
Not Needed
Total:
$682.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$168.00
$176.00
$396.66
Not Needed
Total:
$740.66
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
